L-6142

L-6142 - Image 2

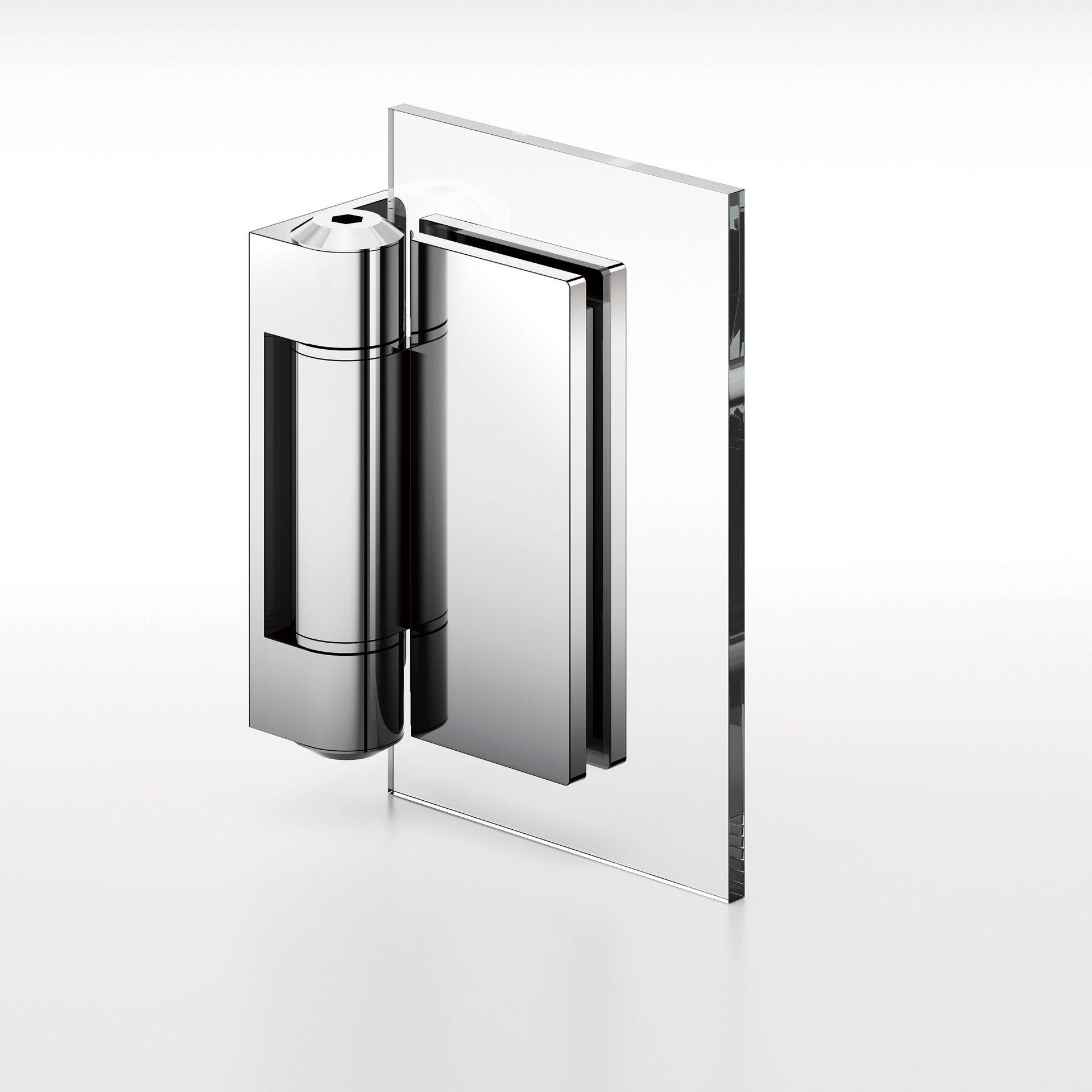

Hydraulic Shower Hinges, SHOWER DOOR HINGES(SPRING FUNCTION)

L-6142

Finish/Color: Satin Brass

Brushed
Bronze

Brushed
Nickel

Polished
Chrome

Matte
Black

Satin
Brass

☏ GET QUOTE ⇩ DOWNLOAD SPEC

PRODUCTS

PRODUCTS

Additional information

Material	Precision Cast Stainless Steel
Finish	See Page 1

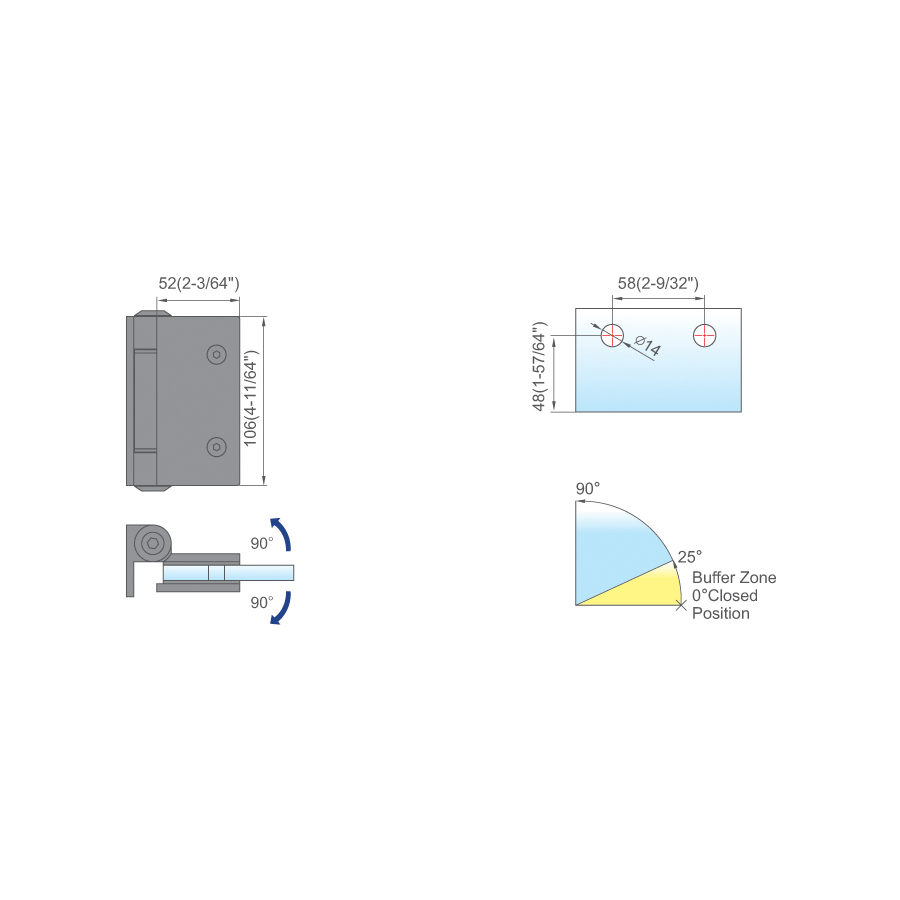

Glass Thickness	15/32", 3/8", 5/16" (12/10/8 mm Tempered Safety Glass)
Article Description	Wall-Glass 90°
Features	• Loading capacity of 2 hinges: 45 kg • When the angle is less than 25°, the door will automatically close • When it reaches 25°, it will have a soft close effect

TECHNICAL SPECIFICATIONS

Material	Precision Cast Stainless Steel
Finish	See Page 1
Glass Thickness	15/32", 3/8", 5/16" (12/10/8 mm Tempered Safety Glass)
Article Description	Wall-Glass 90°
Features	• Loading capacity of 2 hinges: 45 kg • When the angle is less than 25°, the door will automatically close • When it reaches 25°, it will have a soft close effect
