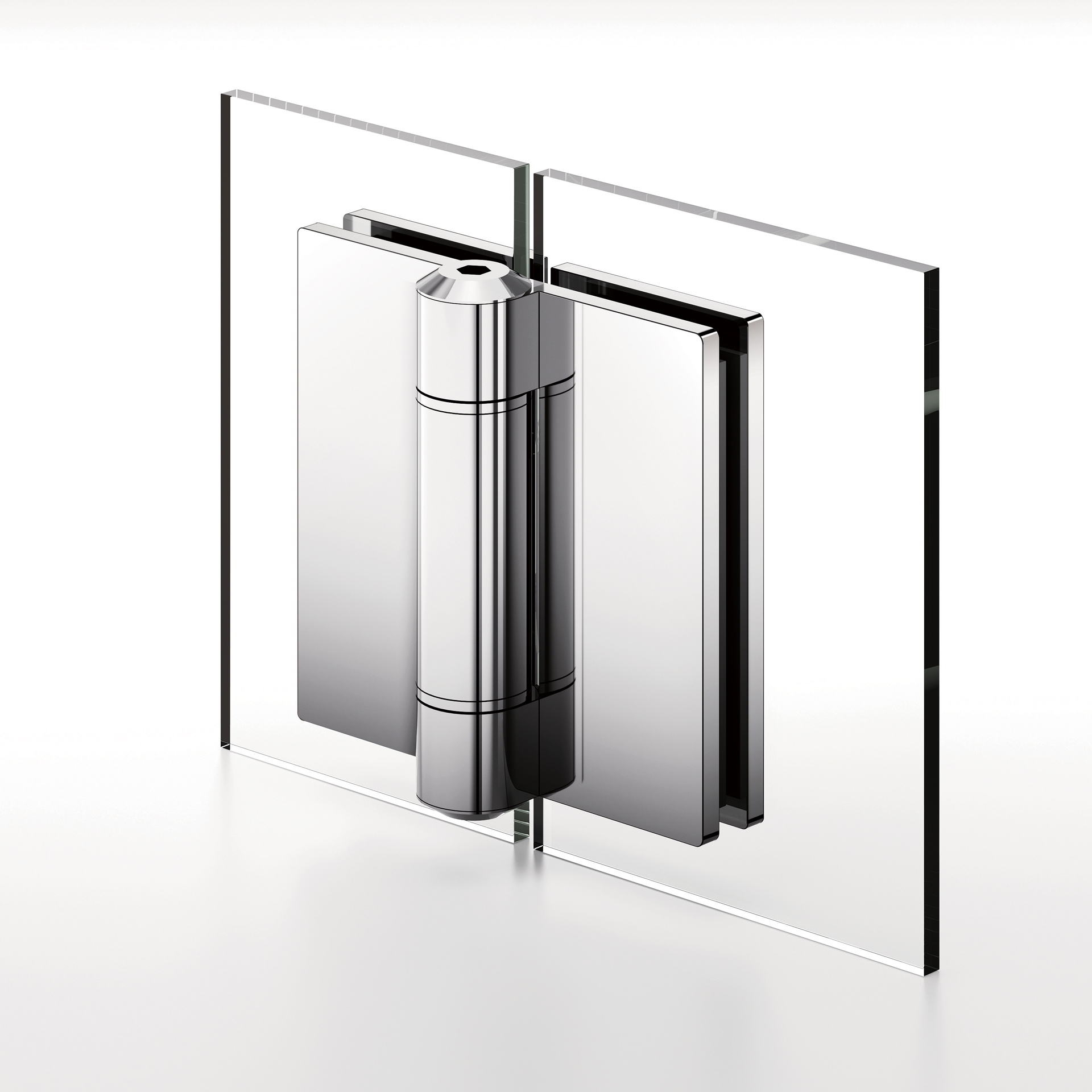

Hydraulic Shower Hinges, SHOWER DOOR HINGES(SPRING FUNCTION)

L-6143

Finish/Color: Satin Brass

Brushed
Bronze

Brushed
Nickel

Polished
Chrome

Matte
Black

Satin
Brass

☏ GET QUOTE ⇩ DOWNLOAD SPEC

PRODUCTS

PRODUCTS

Additional information

Material	Precision Cast Stainless Steel
Finish	See Page 1

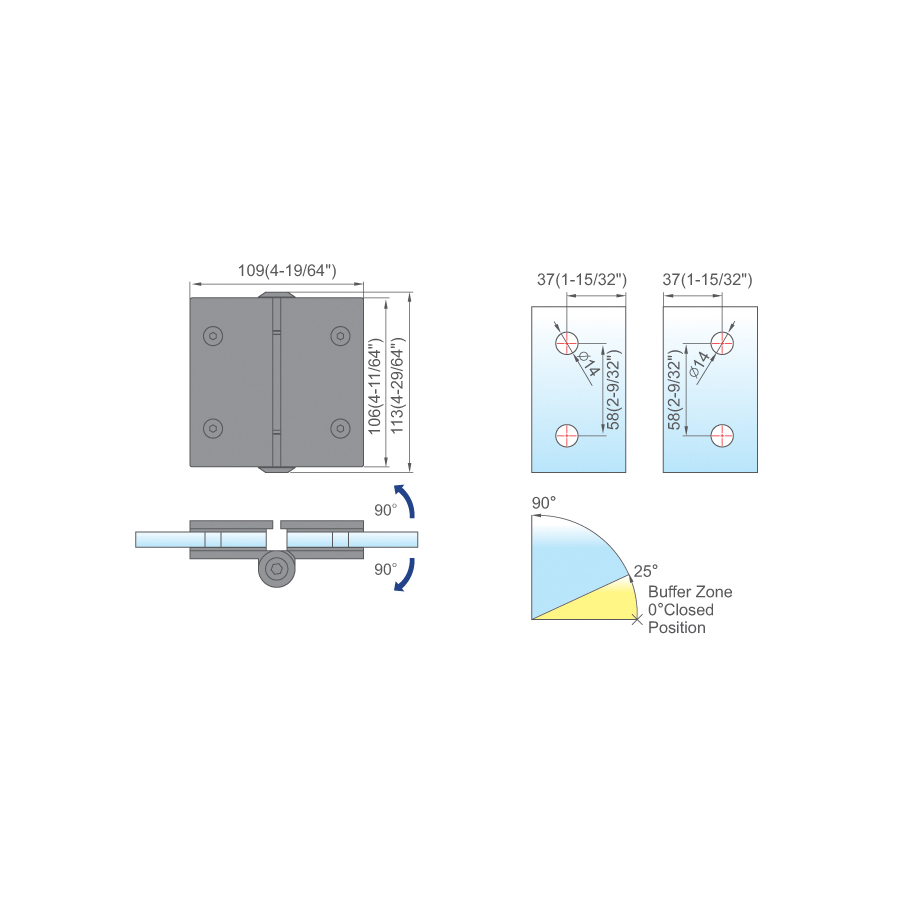

Glass Thickness	15/32", 3/8", 5/16" (12/10/8 mm Tempered Safety Glass)
Article Description	Glass-to-Glass 180°
Features	• Loading capacity of 2 hinges: 45 kg • Automatic closing when the door angle is less than 85° • Soft-close effect when the door reaches 25°

TECHNICAL SPECIFICATIONS

Material	Precision Cast Stainless Steel
Finish	See Page 1
Glass Thickness	15/32", 3/8", 5/16" (12/10/8 mm Tempered Safety Glass)
Article Description	Glass-to-Glass 180°
Features	• Loading capacity of 2 hinges: 45 kg • Automatic closing when the door angle is less than 85° • Soft-close effect when the door reaches 25°
